Mitsubishi Type 0 A6M, CARRIER  FIGHTER,

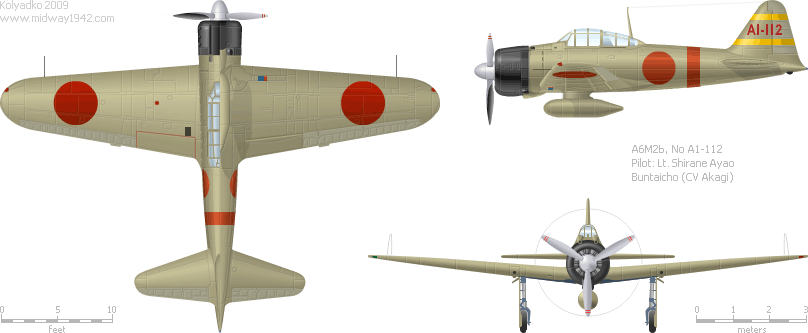

Mitsubishi Type 0 Mod 21 (A6M2b)
.     . Model 21 (A6M2b)   .
Length: 29 ft 9 in 9.06 m Power Plant: Nakajima NK1C Sakae 12 Fuel Capacity: 144 (231*) gal 545 (875*) L
Height: 10 ft 3.05 m Military Power: 950 hp 709 kW Combat Range: 1,675 nm* 3100 km*
Wingspan: 39 ft 4 in 12.0 m Power/Wieght: 0.18 hp/lb 0.39 hp/kg Service Ceiling: 33,000 ft 10 000 m
Wingarea: 241 sq ft 22.44 m² Speed, SL: 245 kts 454 km/h Nose Guns: 2×.303 (7.7 mm), 680 rds**
Empty Weight: 3,704 lb 1680 kg Max Speed: 287 kts 534 km/h Wing Guns: 2×.787 (20 mm), 60 rds
Gross Weight: 5,313 lb 2410 kg Cruise Speed: 180 kts 333 km/h Salvo Weight: 5.06 lb/sec 2.29 kg/sec
Wing Loading: 22 lb/ft² 107.4 kg/m² Rate of Climb: 3,100 ft/min 942 m/min Bomb Load: 2×132 lb (60 kg)
. * With external 87.2 gal (330 L) drop tank.  ** Allowance of ammunition, rounds per gun.
