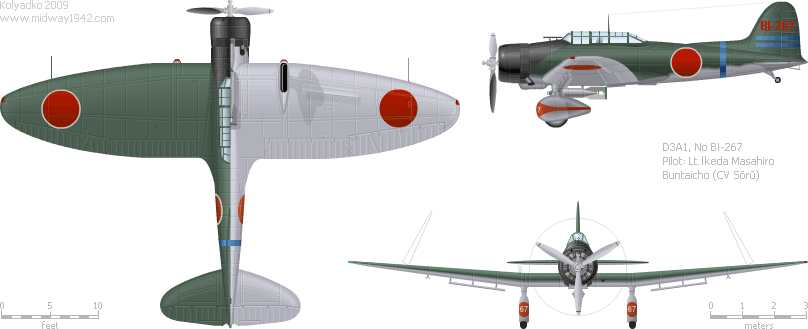

| Aichi Type 99 D3A, 愛知九九式 | CARRIER BOMBER, 艦上爆撃機 | |
| . | . | Model 11 (D3A1) | . | ||||||||||
| Length: | 33 ft 5 in | 10.2 m | Power Plant: | Mitsubishi Kinsei 44 | Fuel Capacity: | 285 gal | 1079 L | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height: | 12 ft 8 in | 3.85 m | Military Power: | 1,070 hp | 798 kW | Combat Range: | 795 nm | 1472 km | |||||
| Wingspan: | 47 ft 2 in | 14.4 m | Power/Weight: | 0.13 hp/lb | 0.29 hp/kg | Service Ceiling: | 30,500 ft | 9300 m | |||||
| Wingarea: | 375.6 sq ft | 34.9 m² | Speed, SL: | 178 kts | 330 km/h | Forward Guns: | 2×.303 (7.7 mm) | ||||||
| Empty Weight: | 5,309 lb | 2410 kg | Max Speed: | 210 kts | 390 km/h | Rearward Guns: | 1×.303 (7.7 mm) | ||||||
| Gross Weight: | 8,047 lb | 3650 kg | Cruise Speed: | 160 kts | 296 km/h | Bomb Load:* | Type 98 #25, 534 lb (242 kg) | ||||||
| Wing Loading: | 21.4 lb/ft² | 104.6 kg/m² | Rate of Climb: | 1,540 ft/min | 469 m/min | Bomb Load:* | Type 99 #25, 553 lb (251 kg) | ||||||
| * Used during the Battle of Midway | |||||||||||||
