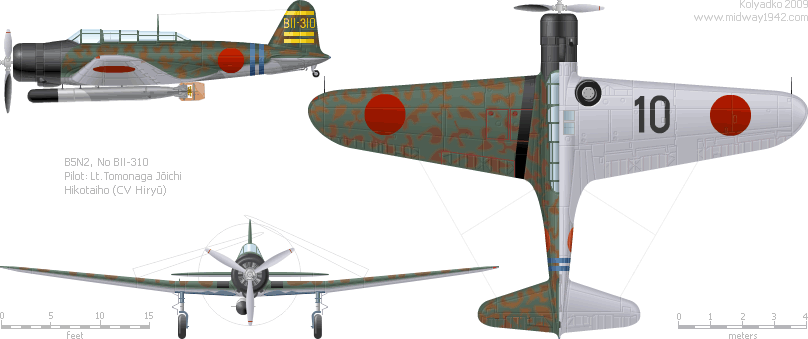

| Nakajima Type 97 B5N, 中島九七式 | CARRIER ATTACK PLANE, 艦上攻撃機 | |
| . | . | Model 12 (B5N2) | . | ||||||||||
| Length: | 33 ft 9 in | 10.3 m | Power Plant: | Nakajima NK1B Sakae 11 | Fuel Capacity: | 306 gal | 1160 L | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height: | 12 ft 2 in | 3.70 m | Military Power: | 1000 hp | 746 kW | Combat Range: | 530 nm | 980 km | |||||
| Wingspan: | 50 ft 11 in | 15.52 m | Power/Weight: | 0.12 hp/lb | 0.26 hp/kg | Service Ceiling: | 27,100 ft | 8260 m | |||||
| Wingarea: | 406 sq ft | 37.70 m² | Speed, SL: | 178 kts | 330 km/h | Forward Guns: | — | ||||||
| Empty Weight: | 5,024 lb | 2279 kg | Max Speed: | 205 kts | 378 km/h | Rearward Guns: | 1×.303 (7.7 mm) | ||||||
| Gross Weight: | 8,380 lb | 3800 kg | Cruise Speed: | 140 kts | 259 km/h | Torpedo: | 1×Type 91 1872 lb (849 kg) | ||||||
| Wing Loading: | 20.6 lb/ft² | 100.8 kg/m² | Rate of Climb: | 1,284 ft/min | 390 m/min | Bomb Load: | Up to 1775 lb (805 kg) | ||||||
