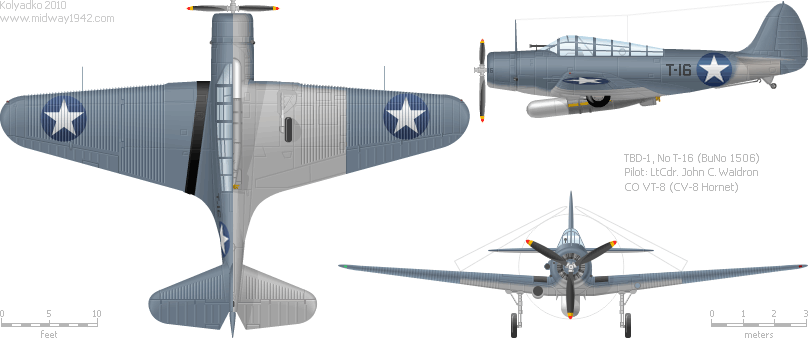

Douglas TBD Devastator |
CARRIER TORPEDO BOMBER |
| |
| . |
|
|
. |
Model TBD-1 |
|
. |
|
|
Length:
| 35 ft
| 10.6 m |
|
Power Plant: |
Pratt & Whitney R-1830-64 |
|
Fuel Capacity:
| 180 gal
| 682 L |
| Height: |
15 ft 3 in |
4.60 m |
Military Power: |
900 hp |
671 kW |
Combat Range: |
380 nm |
705 km |
| Wingspan:
| 50 ft
| 15.2 m |
Power/Weight:
| 0.09 hp/lb
| 0.19 hp/kg |
Service Ceiling:
| 19,700 ft
| 6000 m |
| Wingarea: |
422 sq ft |
39.2 m² |
Speed, SL: |
167 kts |
309 km/h |
Forward Guns: |
1×.30 (7.62 mm) |
| Empty Weight:
| 5,600 lb
| 2539 kg |
Max Speed: |
178 kts |
330 km/h |
Rearward Guns: |
1(2)×.30 (7.62 mm) |
| Gross Weight: |
10,194 lb |
4623 kg |
Cruise Speed:
| 110 kts
| 206 km/h |
Torpedo: |
1×Mark 13 1,927 lb (874 kg) |
| Wing Loading: |
24 lb/ft² |
118 kg/m² |
Rate of Climb: |
720 ft/min |
219 m/min |
Bomb Load: |
Up to 1,000 lb (454 kg) |
|
