| Grumman F4F Wildcat | CARRIER FIGHTER | |

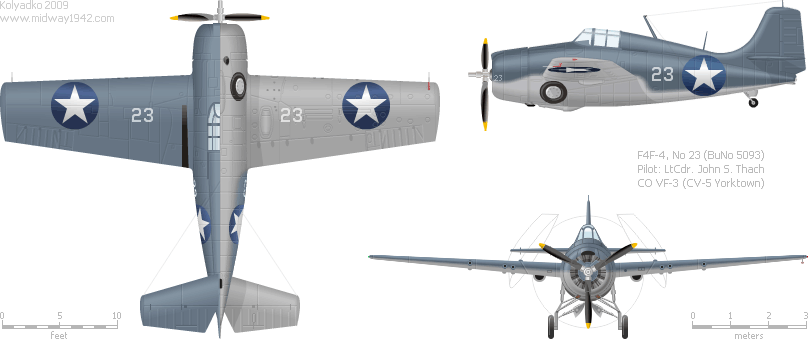

| . | . | Model F4F-4 | . | ||||||||||
| Length: | 28 ft 9 in | 8.76 m | Power Plant: | Pratt & Whitney R-1830-86 | Fuel Capacity: | 144 gal | 545 L | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height: | 11 ft 10 in | 3.60 m | Military Power: | 1200 hp | 895 kW | Combat Range: | 670 nm | 1240 km | |||||
| Wingspan: | 38 ft | 11.6 m | Power/Weight: | 0.16 hp/lb | 0.36 hp/kg | Service Ceiling: | 34,000 ft | 10 363 m | |||||
| Wingarea: | 260 sq ft | 24.0 m² | Speed, SL: | 247 kts | 457 km/h | Nose Guns: | — | ||||||
| Empty Weight: | 5,758 lb | 2611 kg | Max Speed: | 278 kts | 515 km/h | Wing Guns: | 6×.50(12.7 mm), 240 rds* | ||||||
| Gross Weight: | 7,406 lb | 3358 kg | Cruise Speed: | 128 kts | 237 km/h | Salvo Weight: | 8.12 lb/sec | 3.68 kg/sec | |||||
| Wing Loading: | 30 lb/ft² | 147.8 kg/m² | Rate of Climb: | 1,950 ft/min | 594 m/min | Bomb Load: | 2×100 lb (45.4 kg) | ||||||
| . | * Allowance of ammunition, rounds per gun. | ||||||||||||
