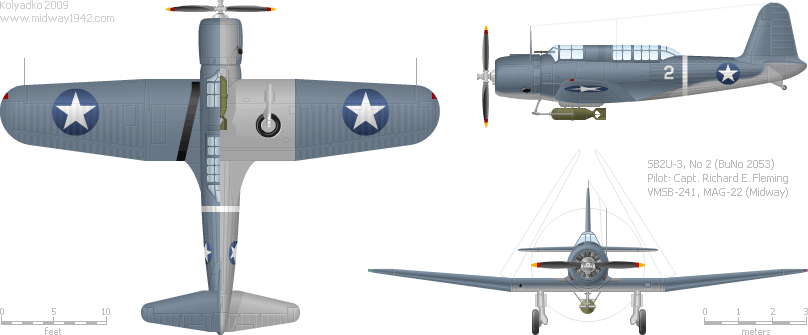

| Vought SB2U Vindicator | CARRIER SCOUT-BOMBER | |
| . | . | Model SB2U-3 | . | ||||||||||
| Length: | 34 ft | 10.36 m | Power Plant: | Pratt & Whitney R-1535-02 | Fuel Capacity: | 420 gal | 1590 L | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height: | 10 ft 3 in | 3.12 m | Military Power: | 825 hp | 615 kW | Combat Range: | 973 nm | 1800 km | |||||
| Wingspan: | 42 ft | 12.8 m | Power/Weight: | 0.11 hp/lb | 0.24 hp/kg | Service Ceiling: | 23,600 ft | 7190 m | |||||
| Wingarea: | 305 sq ft | 28.34 m2 | Speed, SL: | 201 kts | 373 km/h | Forward Guns: | 1×.50 (12.7 mm) | ||||||
| Empty Weight: | 5,634 lb | 2556 kg | Max Speed: | 211 kts | 390 km/h | Rearward Guns: | 1×.50 (12.7 mm) | ||||||
| Gross Weight: | 7,474 lb | 3390 kg | Cruise Speed: | 130 kts | 244 km/h | Bomb Load:* | 1×Mark 13 1000 lb (463 kg) | ||||||
| Wing Loading: | 21 lb/ft² | 103 kg/m² | Rate of Climb: | 1,070 ft/min | 326 m/min | Bomb Load:* | 1×Mark 12 500 lb (234 kg) | ||||||
| * Used during the Battle of Midway | |||||||||||||
