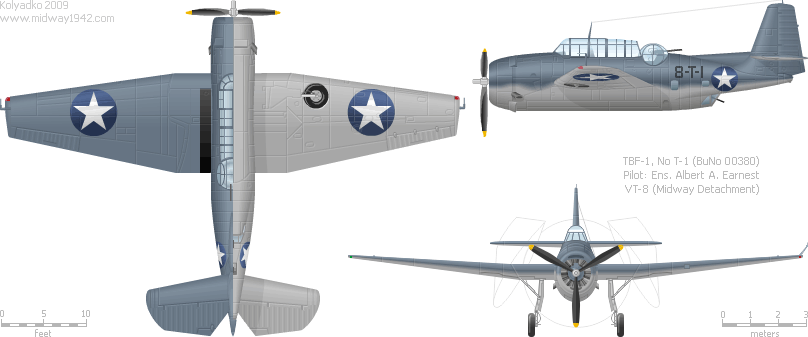

Grumman TBF Avenger |
CARRIER TORPEDO BOMBER |
| |
| . |
|
|
. |
Model TBF-1 |
|
. |
|
|
Length: |
40 ft |
12.1 m |
|
Power Plant: |
Wright R-2600-8 Cyclone 14 |
|
Fuel Capacity: |
335 gal |
1268 L |
| Height: |
16 ft 5 in |
5.00 m |
Military Power: |
1700 hp |
1268 kW |
Combat Range: |
865 nm |
1600 km |
| Wingspan: |
54 ft 2 in |
16.5 m |
Power/Weight: |
0.10 hp/lb |
0.23 hp/kg |
Service Ceiling: |
21,400 ft |
6500 m |
| Wingarea: |
490 sq ft |
45.5 m² |
Speed, SL: |
218 kts |
404 km/h |
Forward Guns: |
1×.30 (7.62 mm) |
| Empty Weight: |
10,555 lb |
4786 kg |
Max Speed: |
235 kts |
436 km/h |
Rearward Guns: |
1×.50 (12.7 mm), 1×.30 |
| Gross Weight: |
16,412 lb |
7443 kg |
Cruise Speed: |
132 kts |
246 km/h |
Torpedo: |
1×Mark 13 1,927 lb (874 kg) |
| Wing Loading: |
33.5 lb/ft² |
163.6 kg/m² |
Rate of Climb: |
1,430 ft/min |
435 m/min |
Bomb Load: |
Up to 2,600 lb (1180 kg) |
|
